Avoid steam loss

It is assumed that around 15 to 20 percent of the steam generated in industrial plants is lost due to leaking steam traps


Defective steam traps can have a wide variety of consequences

Losses of energy and additional costs

Pressure increase in condensate networks

Danger of water hammer

Increased risk of accidents

Regular inspection of steam traps is therefore important in order to detect defects and avoid high energy losses in steam systems

An Example

Leaking steam trap (DN 15, 6 bar) causes leak rate of 20 kg/h.
Steam production costs: EUR 35/ton, Operating hours: 8400h/year
This single leak causes annual costs of approx. 6,000 EUR/year.

The solution

Regular inspection of steam traps with our smart and mobile inspection system Valve Sense - equipped with the Trap Sense App

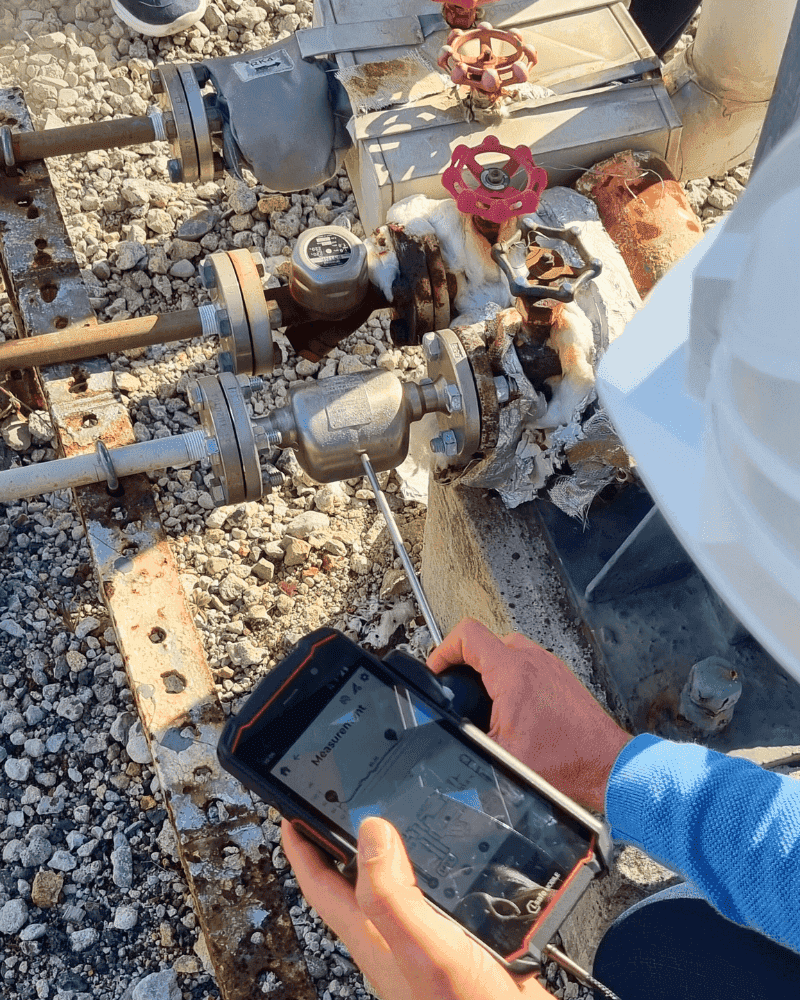

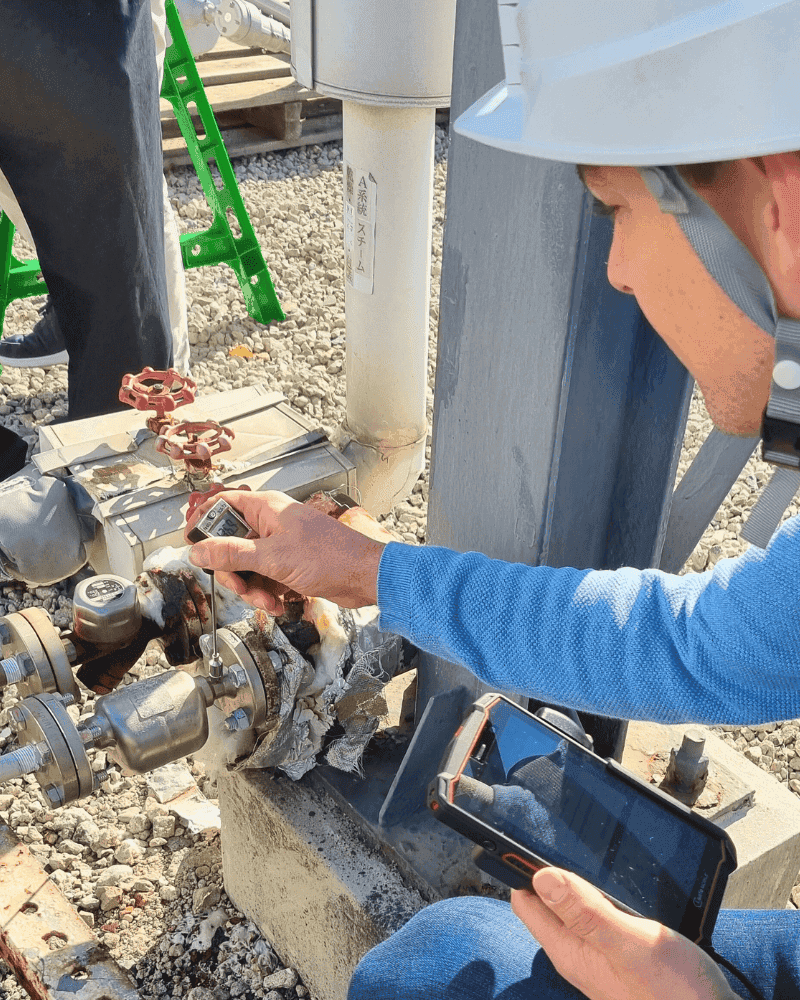

Combination of temperature and acoustic measurements

With the help of temperature and ultrasound measurements, malfunctions of steam traps in your system are effectively detected. At the moment you still need your own temperature measuring device.

Software guided inspection process

Like for valve inspection we guide the user step by step through the inspection process, just follow the instructions on the screen.

Immediate results on site

The Senseven App provides immediate results on site, providing information on: functional, leaking and blocked steam traps as well as condensate overflow.

All data structurally stored in the Senseven Backoffice

All data is also immediately transferred to the Senseven Backoffice. See all inspections and historic data in the platform and derive actions for maintenance activities.

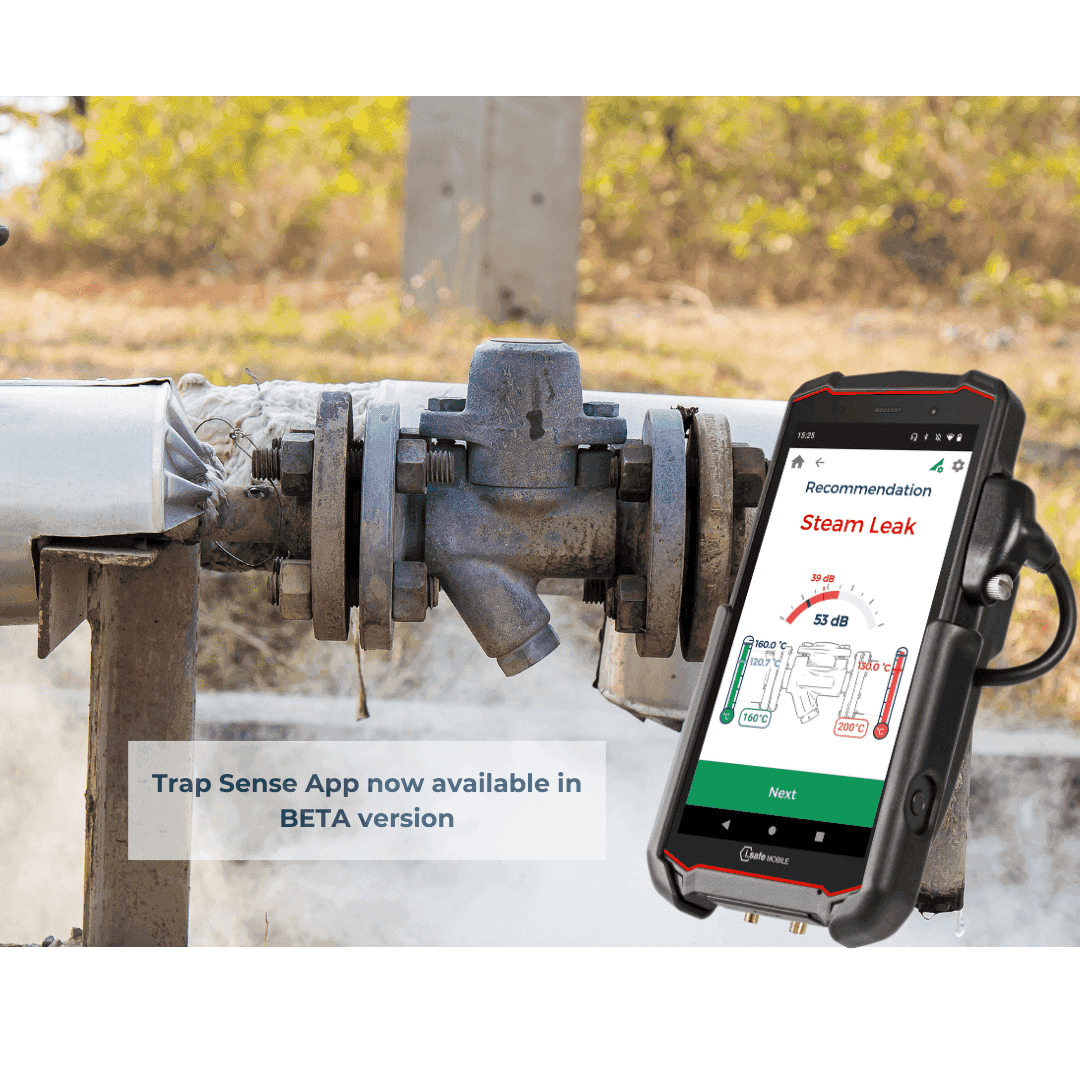

Trap Sense App now available in BETA version.png

Learn more about our smart and mobile inspection system

Find out more

Inspection in Ex areasInspection in non-Ex areas

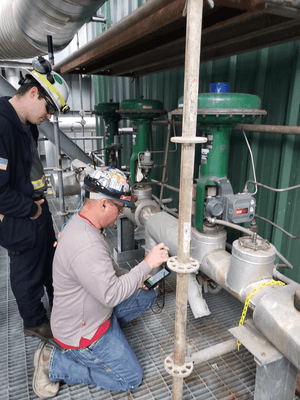

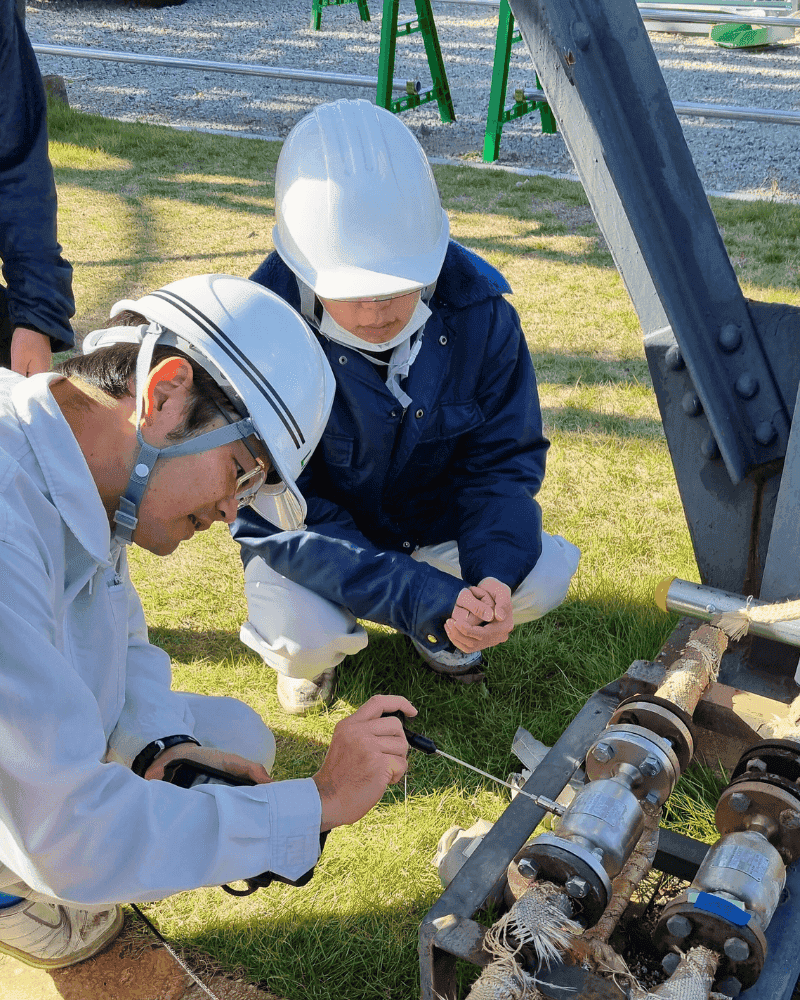

Valve Sense on site
